Pallet Conveyors——Driving unite

Dual drive unite

	100GFWA30	160 240 320 400 480 640	332.7	17.00 17.50 18.00 18.50 19.00 20.00

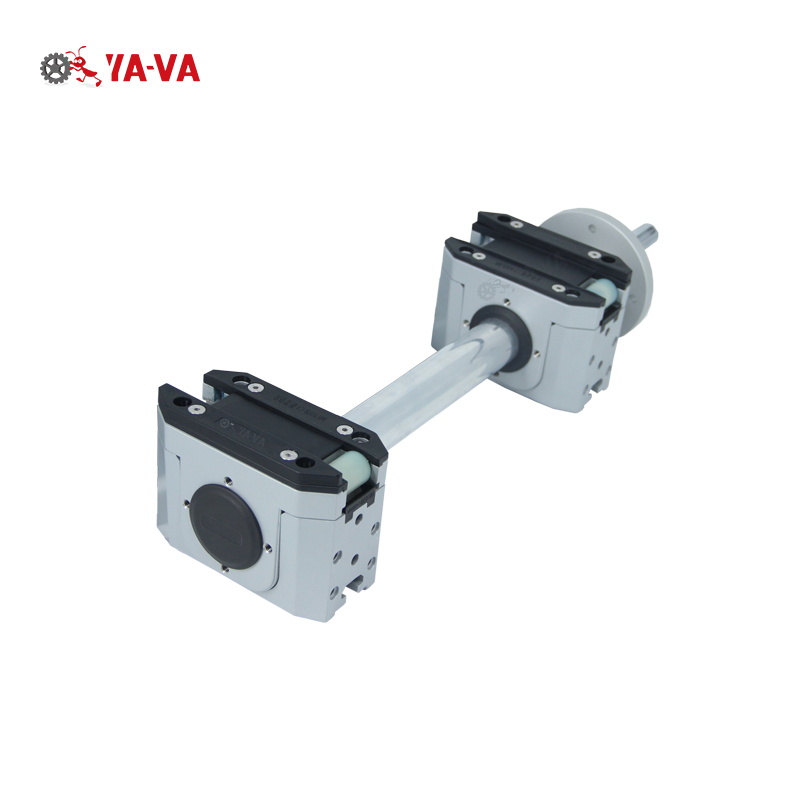

Dual drive unite (toothed)	Motor position	Effective weidth	Effectiv track length	Weight



	100GFWA30	160 240 320 400 480 640	660	17.00 17.50 18.00 18.50 19.00 20.00

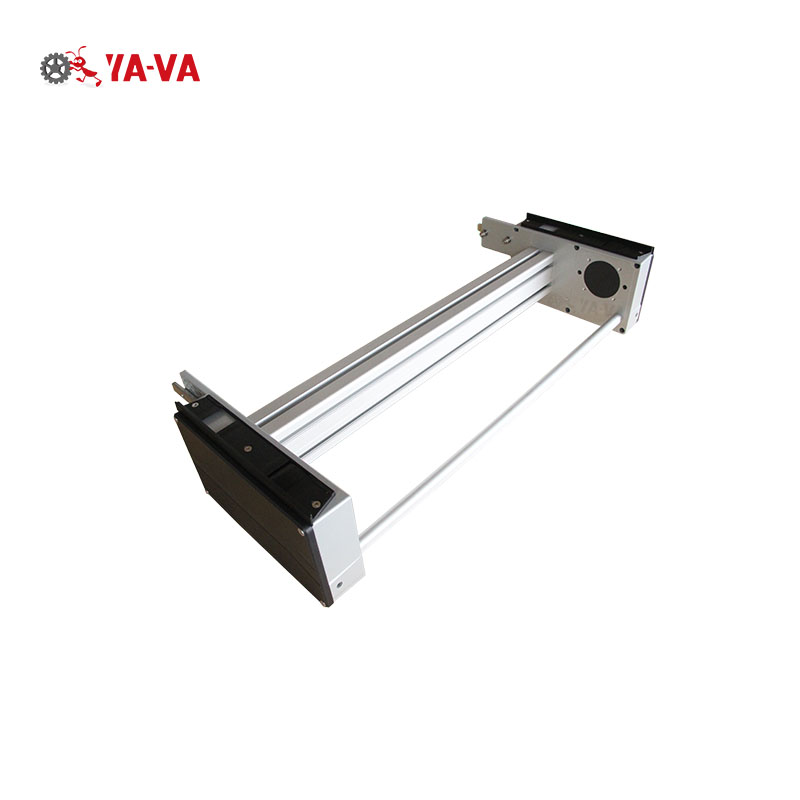

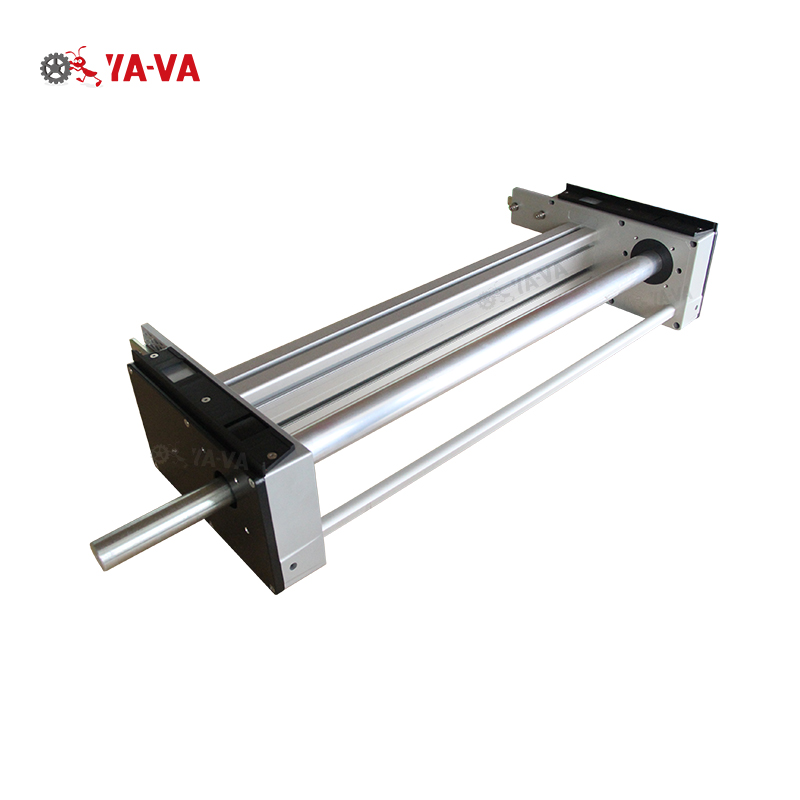

Dual drive unite (flat belt)	Motor position	Effective weidth	Effectiv track length	Weight



	100GFWA30	160 240 320 400 480 640	480	2.4 2.5 2.6 2.7 2.8 3.0

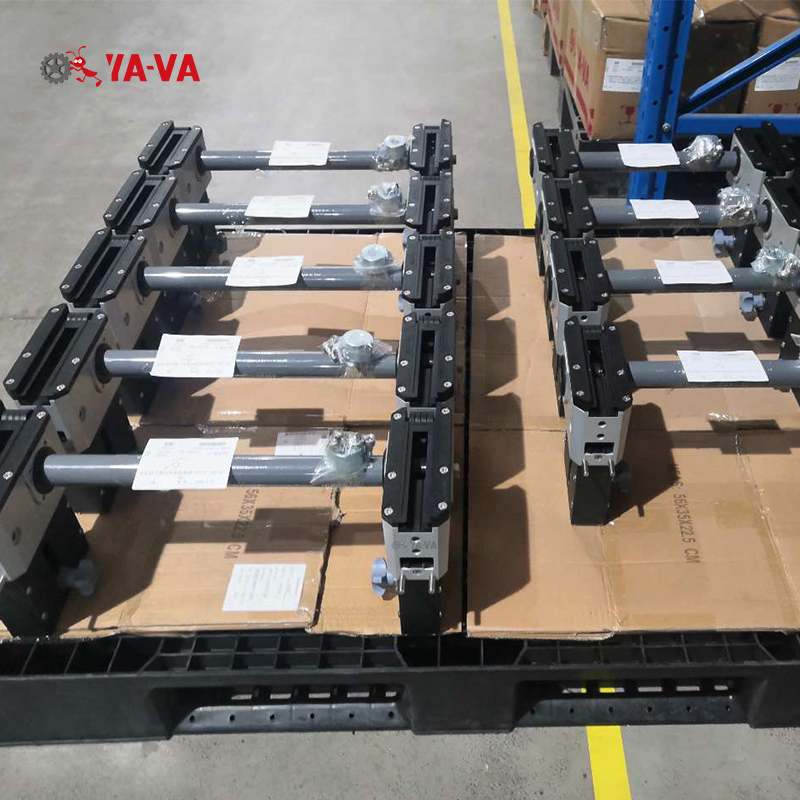

Dual drive unite (roller chain)	Motor position	Effective weidth	Effectiv track length	Weight

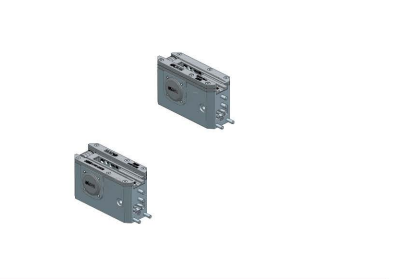

Middle drive unite

	70.8	0.06
Middle drive unite（toothed）	Effectiv track length	Weight



	160  240 320 400 480 640	660	10.10 10.30 10.50 10.70 10.90 11.30
Middle drive unite(flat belt)	Effective weidth	Effectiv track length	Weight



	310	0.92
Middle drive unite(roller chain)	Effectiv track length	Weight
