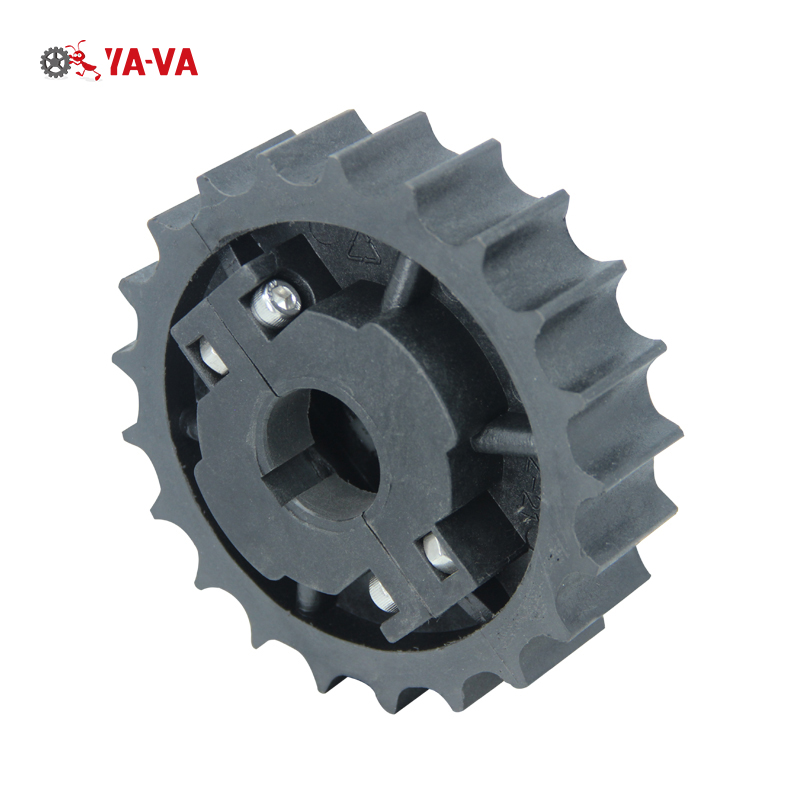

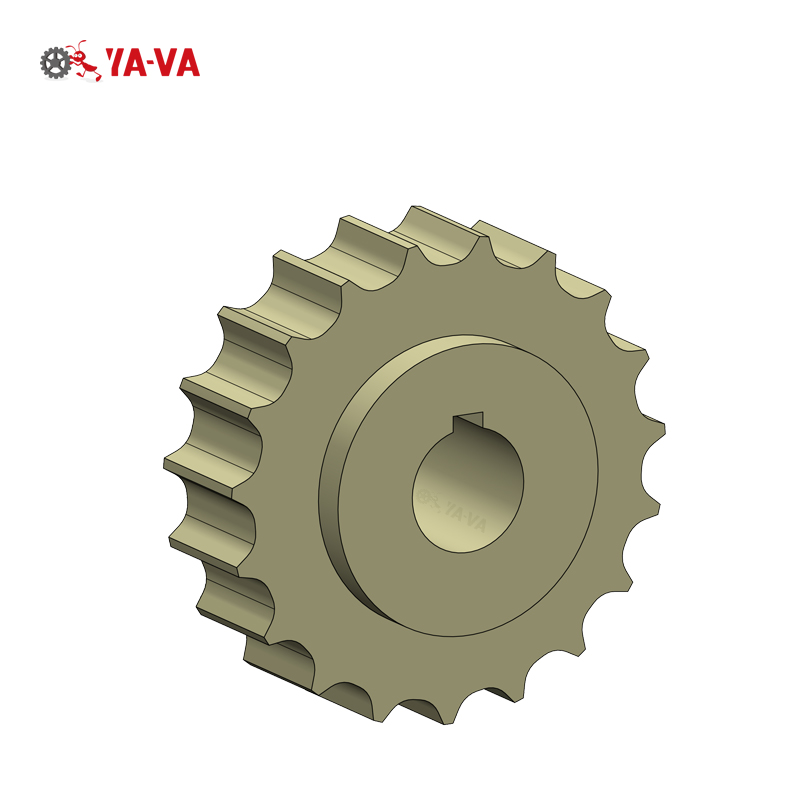

Plastic modular belt drive conveyor sprocket–SS881

Applicable Industries:

Food	electronics	pharmaceutical	Logistics

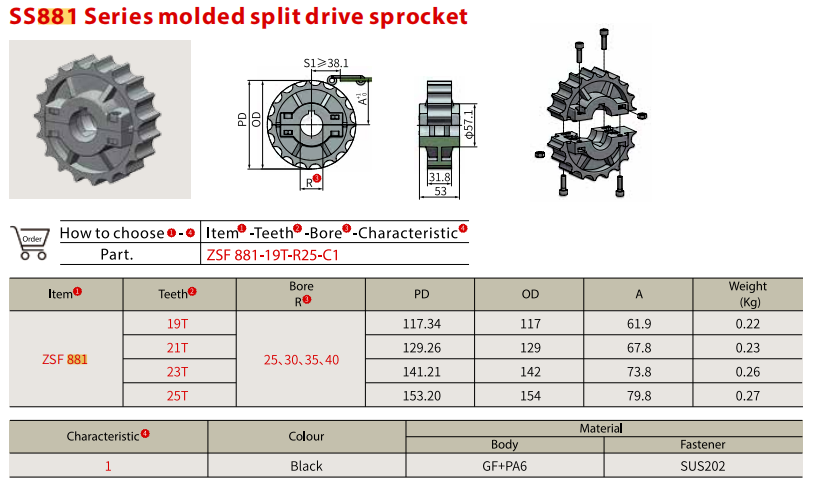

  Technical  Parameters: （Drive Sprocket）

Item	Teeth	Bore	Pd	OD	A	Weight
ZSF881	19T	25、30、35、40	117.34	117	61.9	0.22
	21T		129.26	129	67.8	0.23
	23T		141.21	142	73.8	0.26
	25T		153.20	154	79.8	0.27

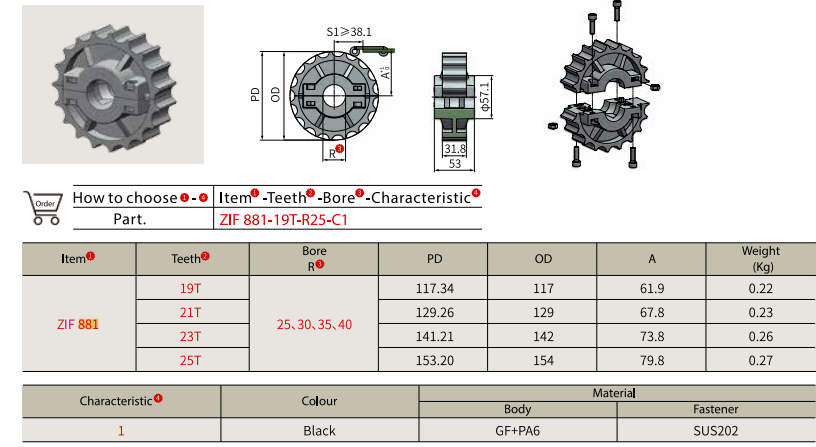

（Idler  Sprocket）

Item	Teeth	Bore	Pd	OD	A	Weight
ZIF881	19T	25、30、35、40	117.34	117	61.9	0.22
	21T		129.26	129	67.8	0.23
	23T		141.21	142	73.8	0.26
	25T		153.20	154	79.8	0.27



characteristic	colour	Material Body Fastener
1	Black	GF+PA6	SUS202

  Feature: 1、Based on different technological processes, slat chain can be divided into straight running type and flexible running type. 2、 More importantly, the plastic chain conveyor installation is very simple, easy to operate. 3、 Plastic chain conveyor adopts standard slat chain as the carrying surface, motor speed reducer as the power, running on the special rail. The conveying surface is flat and smooth and the friction very lower. 4、Single-row conveying can be used for beverage labeling, filling, cleaning and so on. Multi-row conveying can meet Detail
